Coil/Lugger Bin Scales
Accurately Weigh, Live Load & Fill
Another Weigh to Profit
Equipped to handle the unique V-shape design of the bins, our lugger bin scales are accurate and offer extra value—our scrap metal clients are providing them to their clients. These scales are ideal for high-capacity steel coil weighing as well as scrap and recycling applications.
Featuring self-contained frames that tie load cell assemblies together, our lugger bin scales provide bolt-down and anti-lift mechanism holes. Active Scale’s lugger bin scales are purpose-built and have been field tested for over a decade.
Talk to our sales department today for more details.
ALBS Series Lugger Box
Key Features
- Capacity 80,000 lb x 10 lb
- Custom designed to accept lugger boxes
- Top of scale is constructed to project above frame
- Height to slide surface approximately 11⅞”
- Heavy-duty structure to accept highly concentrated load of lugger boxes
- Self frame ties load cell assemblies to each other and provides bolt-down and anti-lift mechanism holes
- Four 30-ton stainless-steel hermetically sealed load cells
- Not currently NTEP-approved
- Top of live deck constructed to project above frame
- Protected, self-contained load cell
- Self-contained with sub-frame
Options
- Custom paint system sizes and capacities
- Galvanizing
- Bin/End stops
- Oil containment
Tuff-Deck Load Cells
The standard Tuff-Deck steel vehicle scale utilizes a self-restoring rocker pin design load cell, 30 ton capacity each, with 150% safe working overload, and 350% ultimate overload capability. This load cell is manufactured from 17-4 PH and 316 stainless steel materials and is highly resistant to corrosion.

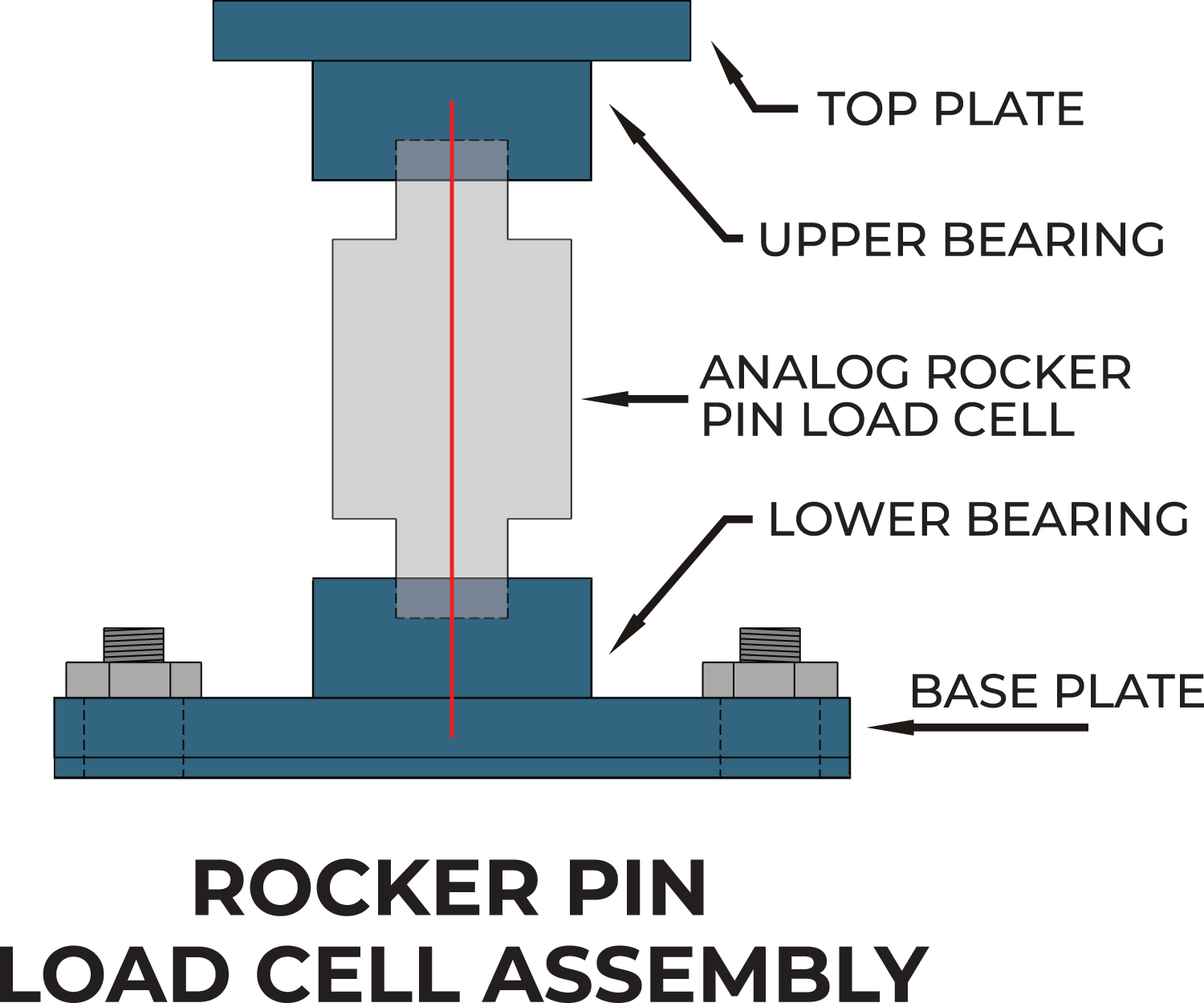

The rocker pin load cell allows a simple mounting arrangement with one lower and one upper bearing. The load cell is supplied with a rubber boot to protect the lower bearing from mud contamination. There are no links or pins to wear out.
