Roll-Off Bin Scales
Reliable Results for Live Loading & Filling
More Value for Your Business
Our scrap metal clients have discovered a new revenue stream—they’re providing their customers with Active Scale roll-off bin scales for at-customer weighing. Unlike competing products that are often just smaller weighbridges, Active Scale’s roll-off bin scales are purpose-built and have been field tested for over a decade. With a high capacity of up to 50 ton, Active Scale roll-off bin scales feature a narrow 8′ wide footprint that matches the truck bed, allowing more room for additional bins. They are the perfect fit for scrap metal and waste material collection.
Talk to our sales department today for more details.

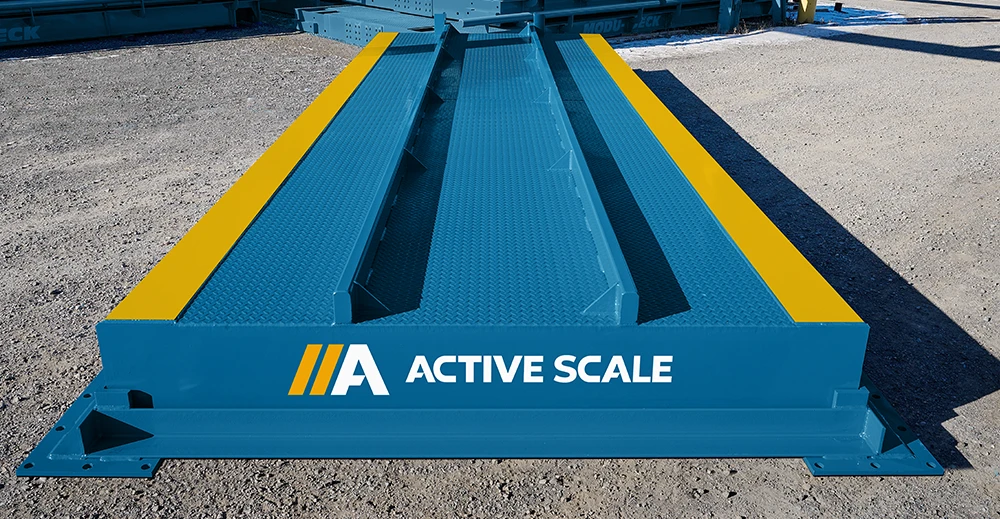

Roll-Off Bin Scales
Key Features
- Capacity 100,000lb X 10lb
- Bin roller guides w self contained sub-frame
- Custom designed to accept roll-off bins
- Top of scale is equipped with rails to emulate truck frame, allowing bin to slide from truck straight onto the scale deck
- Height to slide surface approximately 18″ or lower in custom heights
- Scale is approximately 8′ wide
- Heavy-duty structure to accept highly concentrated load of tipped bin
- ¼″ checker plate between guide rails
- Integrated frame ties load cell assemblies to each other and provides bolt-down holes
- Four 30-ton stainless-steel hermetically sealed load cells
- Integrated load cell plates and end stops, requires additional 10″ for installation
- Not currently NTEP-approved
Options
- Lengths of 16′ to 28′
- Above ground or pit mounted
- Custom heights
- Optional galvanized steel
- Custom paint systems
- Complete line of accessories, including:
- Digital weight indicators
- Printers
- Remote displays
- Barcode systems
- Computerized scale house ticketing systems
- Unattended weigh stations
Tuff-Deck Load Cells
The standard Tuff-Deck steel vehicle scale utilizes a self-restoring rocker pin design load cell, 30 ton capacity each, with 150% safe working overload, and 350% ultimate overload capability. This load cell is manufactured from 17-4 PH and 316 stainless steel materials and is highly resistant to corrosion.
The rocker pin load cell allows a simple mounting arrangement with one lower and one upper bearing. The load cell is supplied with a rubber boot to protect the lower bearing from mud contamination. There are no links or pins to wear out.
